Type C 3 in 1 Hub
SKU
KQH314
Type-C to HDMI/USB-A/Type-C Data or PD3.1 Charging hub, offering an integrated solution for video and data. It has 1 HDMI port for video transmission and 1 USB-A 5G port for data transmission. Besides, there is a Type-C port could both support 5G data transmission and PD3.1 with max 140W PD charging. It can work on all DP Alt mode supported Type-C host.
Key Features

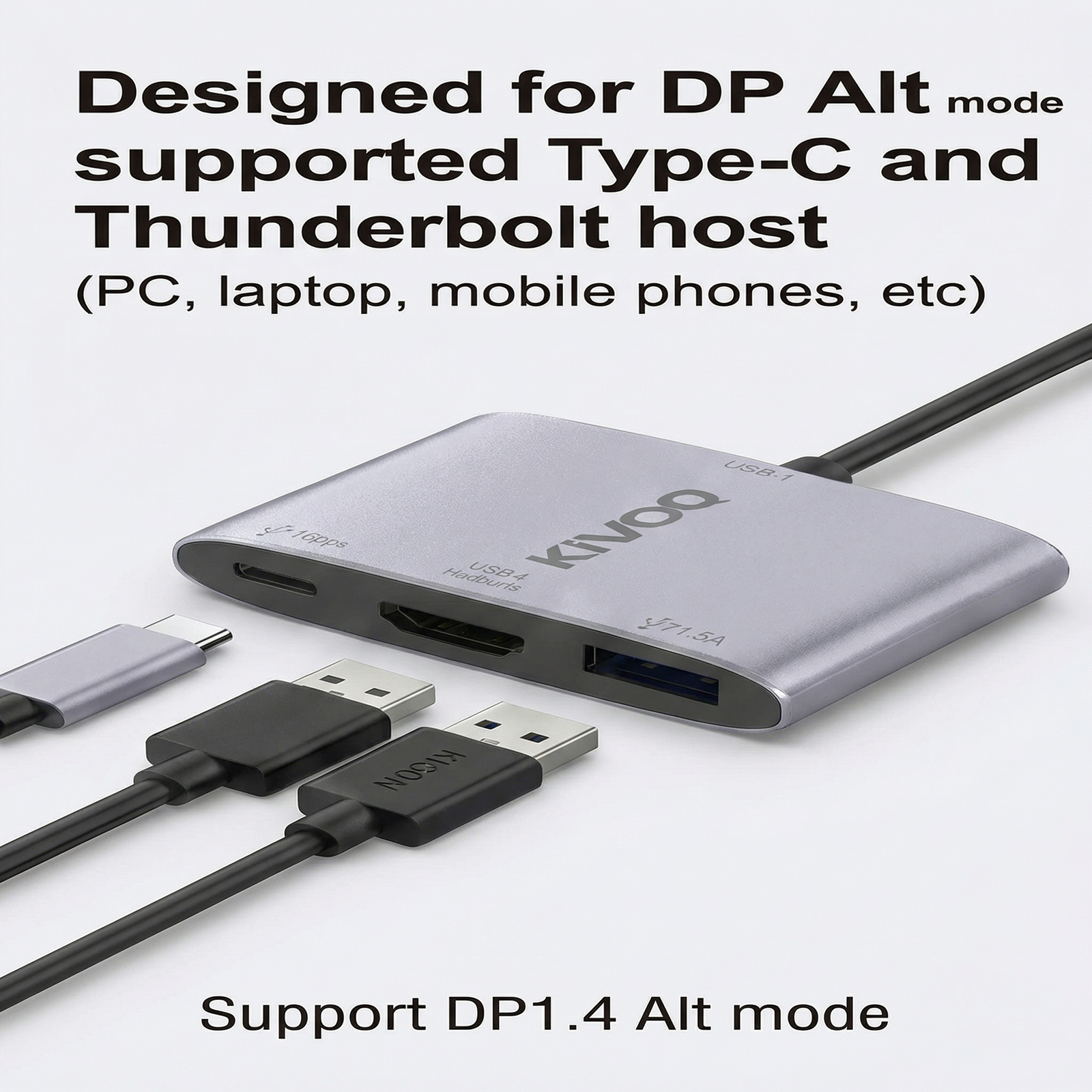

- Designed for DP Alt mode supported Type-C and Thunderbolt host (PC, laptop, mobile phones, etc)
- Support DP1.4 Alt mode

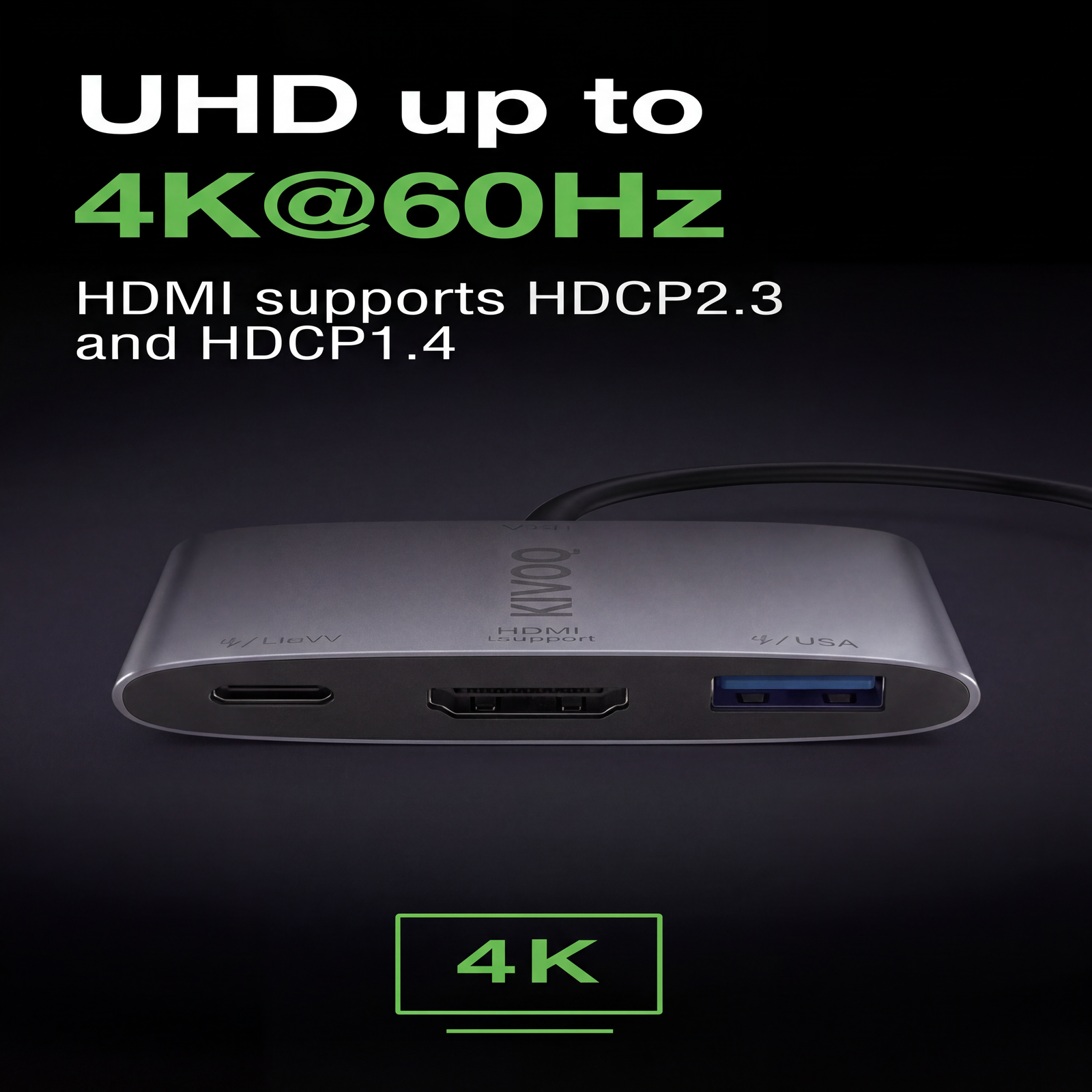

- HDMI supports max 4K/60Hz video output, and supports HDCP2.3 and HDCP1.4

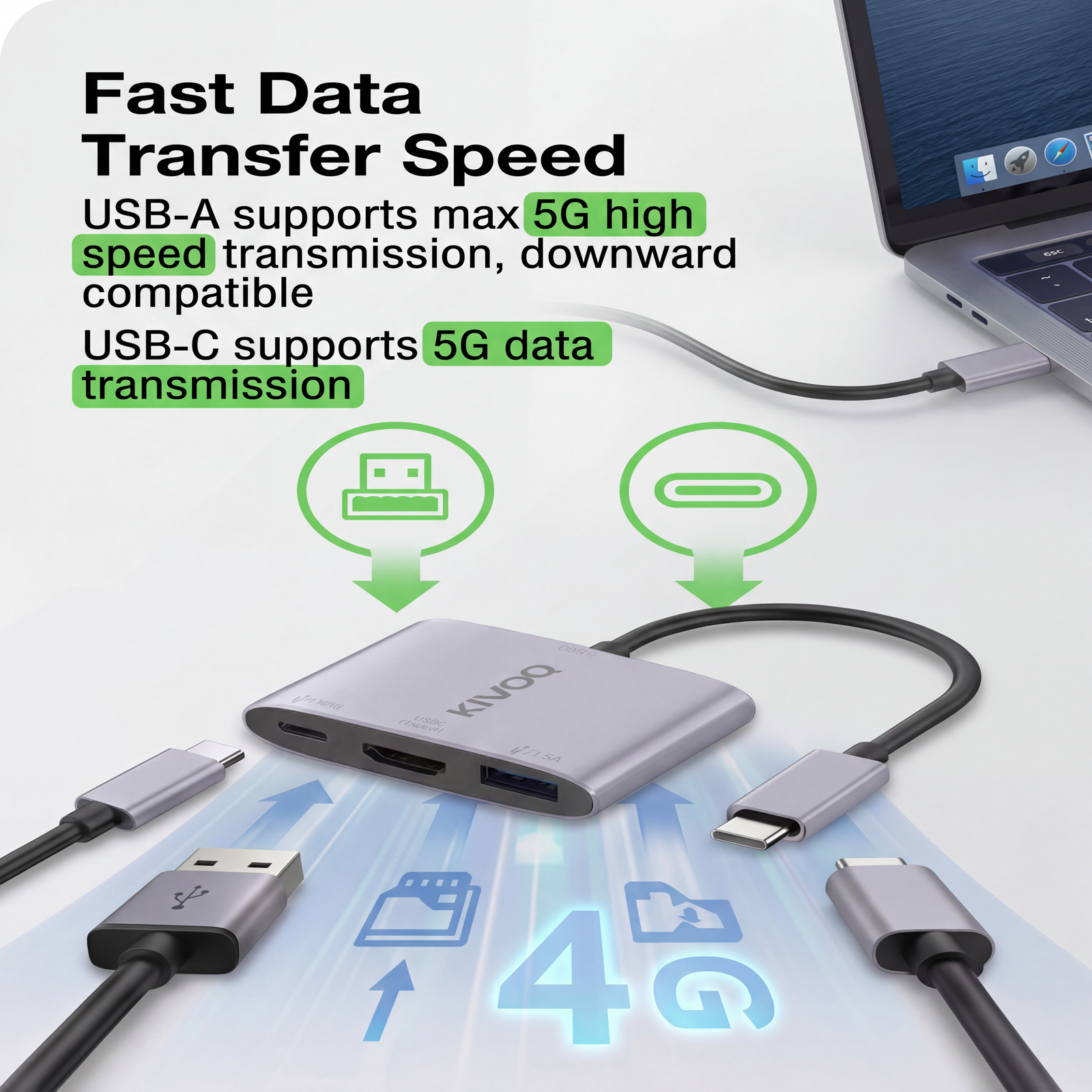

- USB-A supports max 5G high speed transmission, downward compatible with lower versions

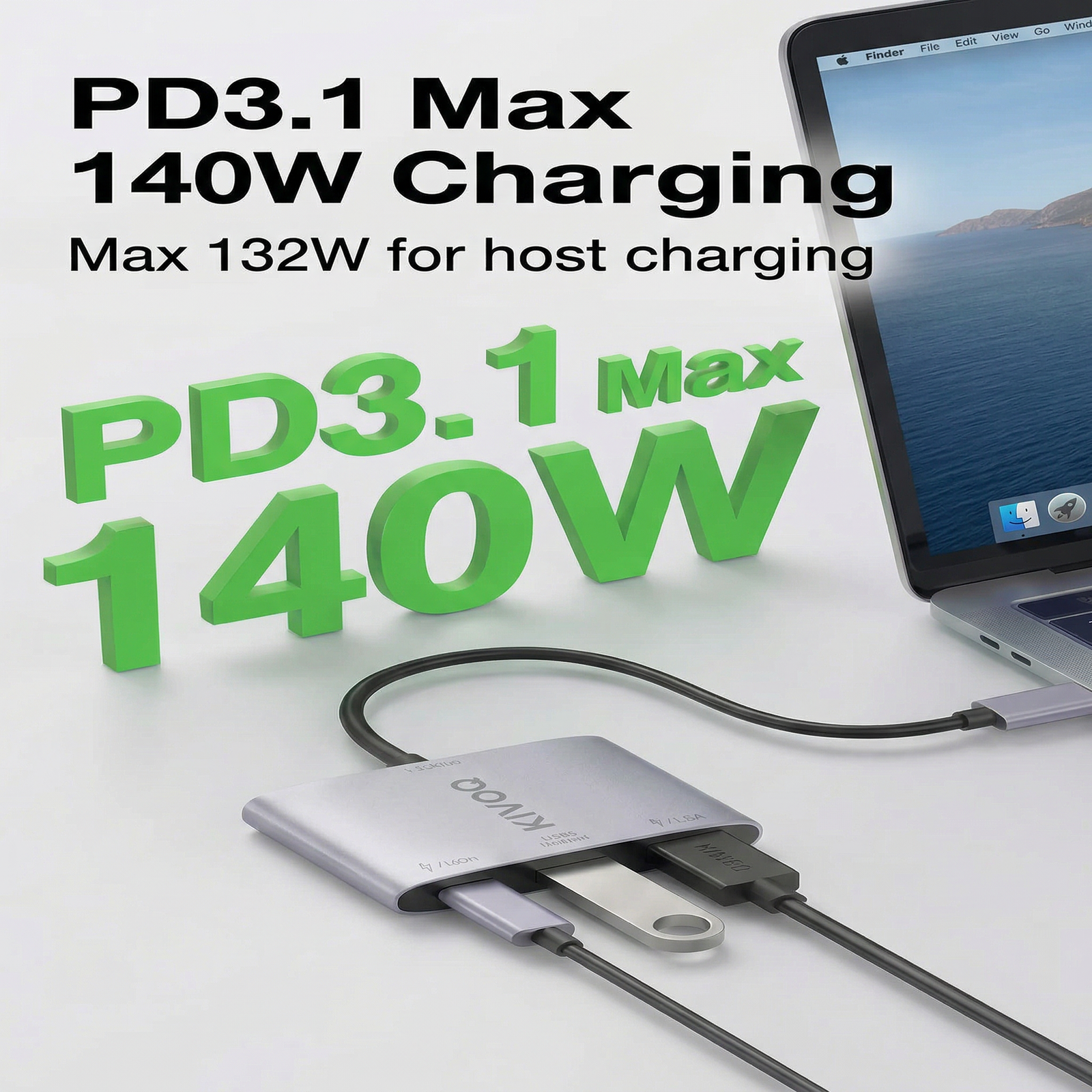

- USB-C supports 5G data transmission or PD3.1 max 140W charging, max 132W for host charging
- 1x Type C 3 in 1 Hub
- Quick Start Guide
- Warranty Card (2 Years)
USB-C enabled
devices like
Mac, Windows,
Chromebook
and more.
Compatible
with M1, M2,
M3, M4 & M5 4K HDMI (60Hz) MacBooks.
| SPECIFICATIONS | |
| Input USB-C Male x1 | |
| Output | HDMI x1(Max 4K/60Hz）USB-A 5G x1(Max 5G） |
| Type-C Date&PD Charging x1 (Max 5G& Max PD3.1 140W） | |
| Type-C Male | |
| • Support DP1.4 Alt mode | |
| • Support reversible connection | |
| • Support PD 3.0 Fast Role Swap | |
| HDMI | |
| • Support High Dynamic Range(HDR) | |
| • Support multiple color formats | RGB; YCbCr4:4:4; |
| • CbCr4 | 2:2;YCbCr4:2:0； |
| • Support 8/10/12 bit Color depth | |
| • Support HDCP2.3 and HDCP1.4 | |
| USB-A | |
| • Compliant USB3.2 Gen1 with max 5Gbps data transmission | |
| • Support max 1.5A downstream charging | |
| • Support short-circuit, over-current protection | |
| Type-C PD Charging | |
| • Compliant USB3.2 Gen1 with max 5Gbps data transmission | |
| • Support PD3.1 with max 140W PD Charging | |
| • 8W is dedicated to the functioning of this product, the rest power (max 132W) will be passed to charge for the host | |
