Type C 5 in 1 Multiport hub
SKU
KQHD25
Type-C 5-in-1 adapter with HDMI, 2 USB-A, Type-C data and Type-C PD charging female ports, providing an ideal solution for extending the port of Type-C or Thunderbolt host (PC/Laptop/Mobile phone,etc.),especially for those host with a single Type-C port. This hub adopts DP1.4 Alt mode supported IC, enabling to output HDMI video with max 4K/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2 USB-A and Type-C data ports allow you to connect 3 USB devices simultaneously. Besides, the Type-C female supports PD 3.0 with max 100W PD Charging. It can work on all DP Alt mode supported Type-C host.
Key Features

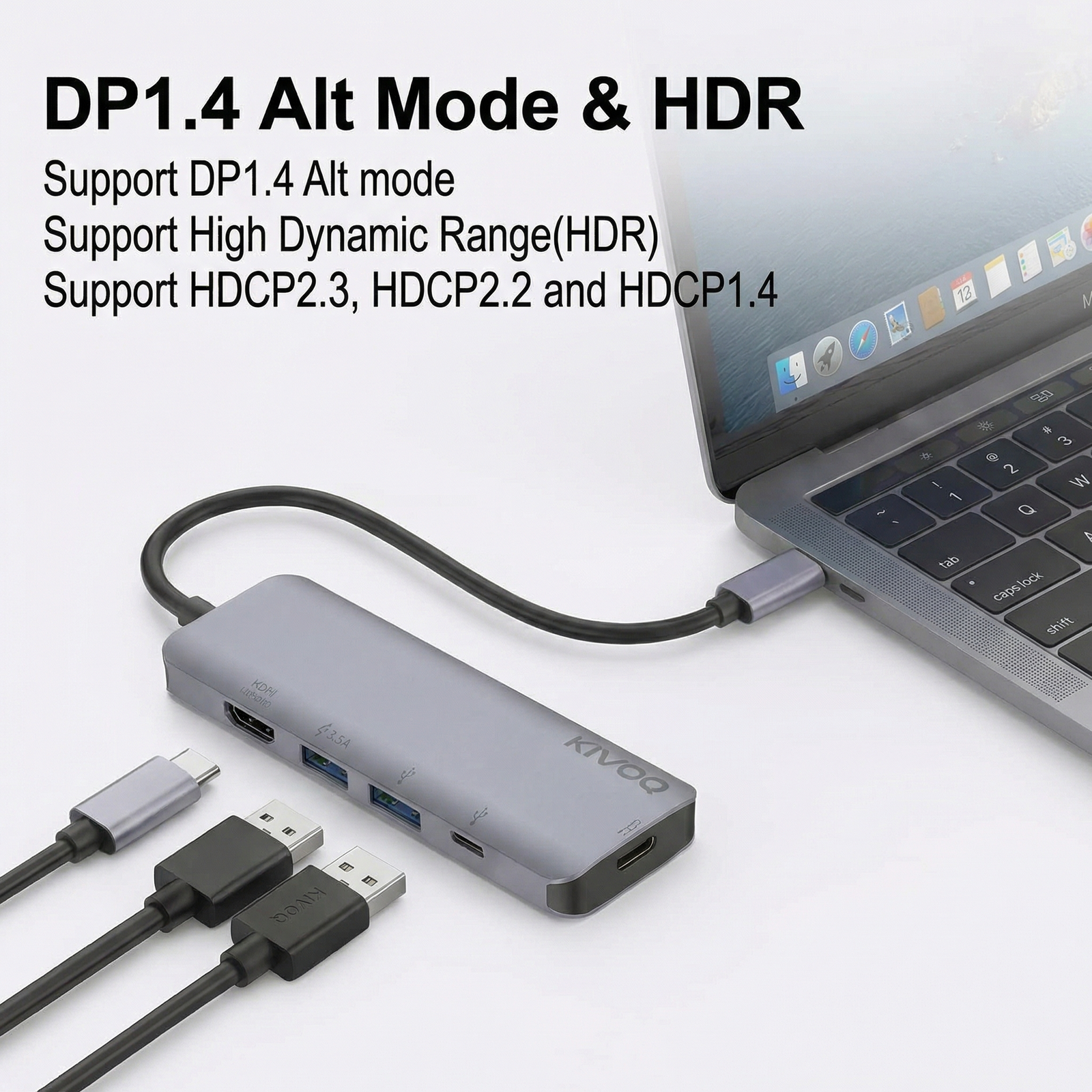

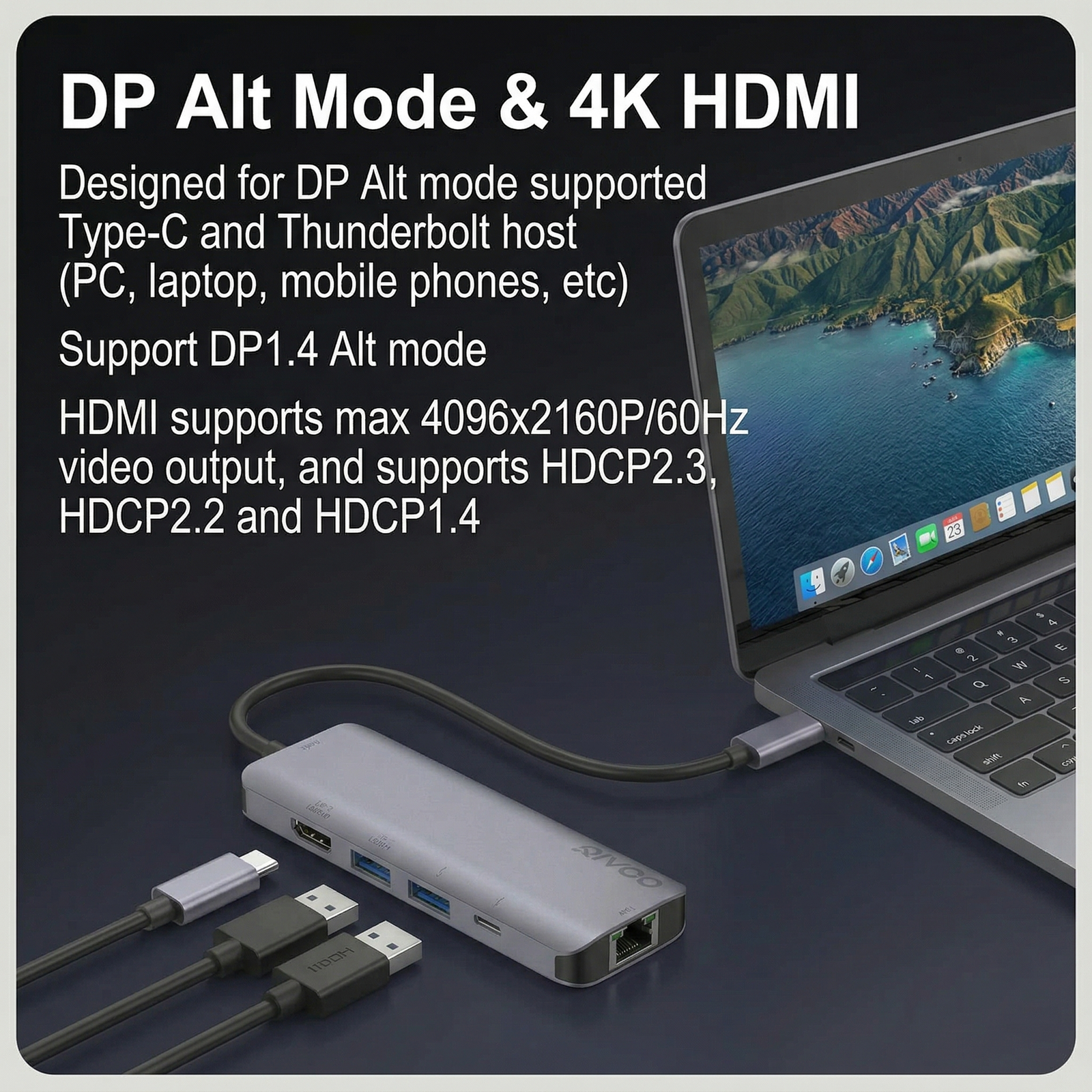

- Support DP1.4 Alt mode
- Support HDMI max 4K/60Hz
- Support High Dynamic Range(HDR)
- Support HDCP2.3, HDCP2.2 and HDCP1.4
- 2 USB-A and Type-C data ports all support max 5Gbps data transmission and share max 12W(5V/2.4A) output
- USB-C data port and one USB-A port close to HDMI support max 1.5A downstream charging
- One Type-C supports PD3.0 with max 100W charging
- Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging out PD Adapter
- 1x Type C 5 in 1 Multiport hub
- Quick Start Guide
- Warranty Card (2 Years)
USB-C
enabled
devices like
Mac,
Windows,
Chromebook
and more.
Compatible
with M1, M2,
M3, M4 & M5
MacBooks.
| Input USB-C Male x1 | |
| Output | HDMI x1(Max 4K/60Hz）USB-A 5G x1(Max 5G） |
| Type-C Date&PD Charging x1 (Max 5G& Max PD3.1 140W） | |
| Type-C Male | |
| • Support DP1.4 Alt mode | |
| • Support reversible connection | |
| • Support PD 3.0 Fast Role Swap | |
| HDMI | |
| • Support High Dynamic Range(HDR) | |
| • Support multiple color formats | RGB; YCbCr4:4:4; |
| • CbCr4 | 2:2;YCbCr4:2:0； |
| • Support 8/10/12 bit Color depth | |
| • Support HDCP2.3 and HDCP1.4 | |
| USB-A | |
| • Compliant USB3.2 Gen1 with max 5Gbps data transmission | |
| • Support max 1.5A downstream charging | |
| • Support short-circuit, over-current protection | |
| Type-C PD Charging | |
| • Compliant USB3.2 Gen1 with max 5Gbps data transmission | |
| • Support PD3.1 with max 140W PD Charging | |
| • 8W is dedicated to the functioning of this product, the rest power (max 132W) will be passed to charge for the host | |
